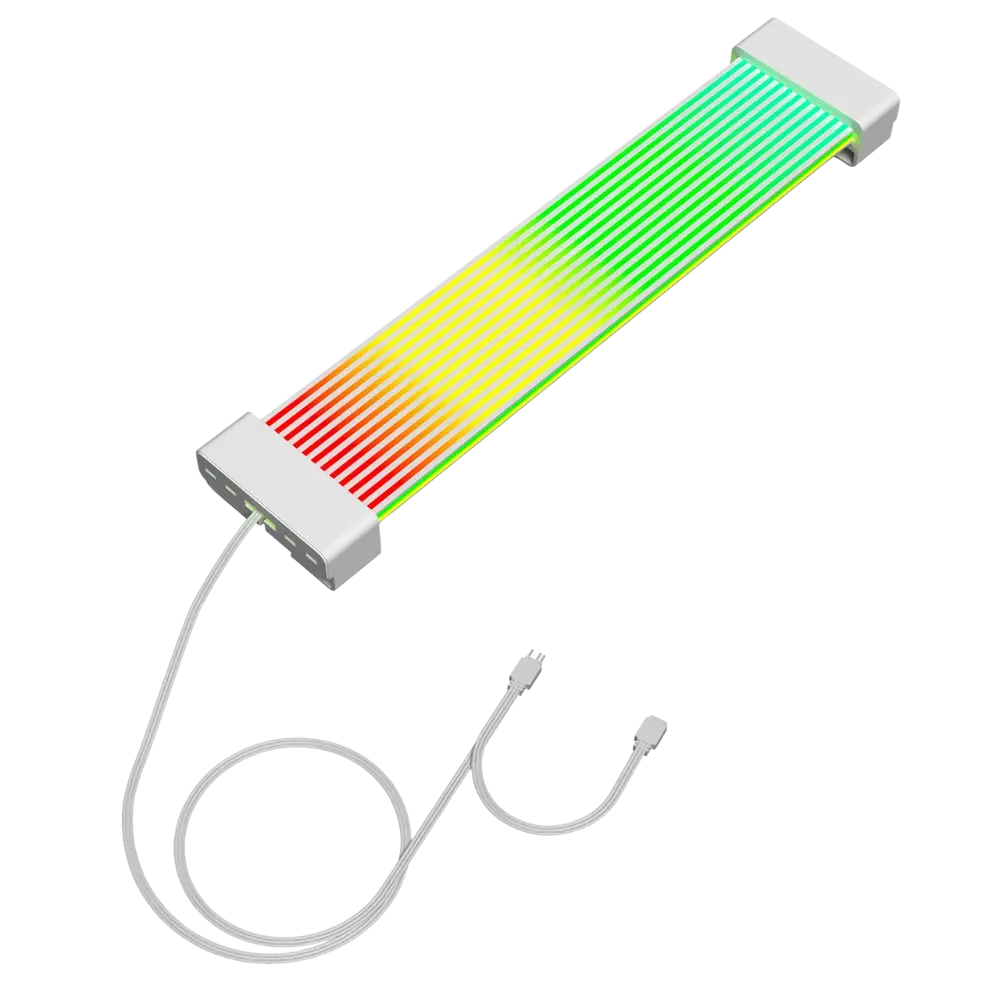

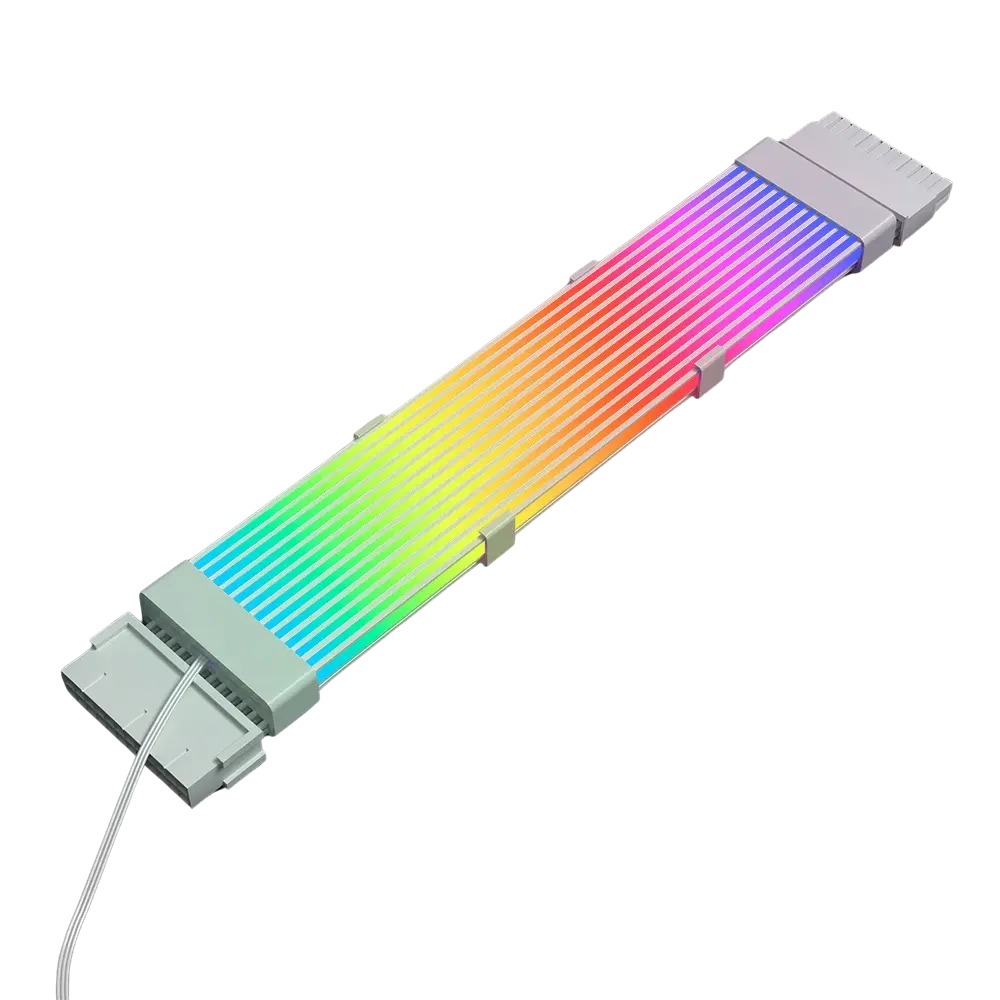

The Spear 24-pin Rainbow ARGB cable in white sits between your power supply's 24-pin lead and the motherboard, adding 5V 3-pin ARGB lighting that syncs with the board. It is made for white builds with a glass side panel and pairs with the white Spear 8-pin GPU cable.
Key features
- 24-pin ATX motherboard power extension with copper connectors
- Addressable 5V 3-pin ARGB lighting that syncs with motherboard software
- Flexible silicone jacket for clean routing
- White finish for all-white builds
- Works with any ATX, mATX or ITX motherboard and any PSU, modular or not
Specifications
| Model | Spear 24PIN Rainbow ARGB PIN Cable, White |
|---|---|
| Type | 24-pin ATX motherboard extension with ARGB lighting |
| Connector | 24-pin, copper |
| Lighting | Addressable 5V 3-pin ARGB |
| Material | Flexible silicone |
| Compatibility | Any motherboard with a 24-pin input; any PSU |
Compatibility
Plug your PSU's 24-pin cable into one end of the extension and the other end into the motherboard. The lighting needs a 5V 3-pin ARGB header or controller; never connect it to a 12V 4-pin RGB header, as that will damage the LEDs. Without an ARGB header, the cable still passes power normally.
FAQ
Does it affect PSU stability?
No. The copper extension passes power through unchanged, and the lighting is powered separately from the ARGB header. Make sure both connectors click fully into place.
Where do I connect the lighting?
To the motherboard's 5V 3-pin ARGB header, often labelled ADD_GEN2, JRAINBOW, D_LED or ADDR_LED, then set colours in your board's lighting software.
Is the white version the same as the black one?
Yes. Same 5V 3-pin ARGB interface, silicone jacket and copper 24-pin connector; only the colour differs.
