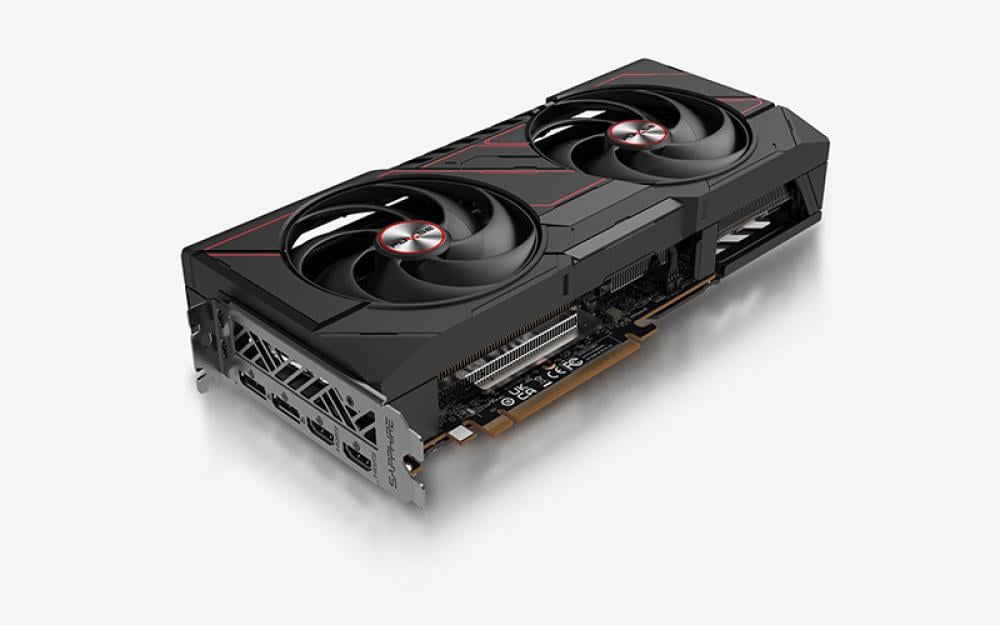

The SAPPHIRE PULSE Radeon RX 9070 16GB is an efficient RDNA 4 graphics card for 1440p gaming. With 56 compute units, 16GB of GDDR6 and FSR 4 support, it runs at 220W on two standard 8-pin connectors and suits builds with a 650W power supply.
Key features
- RDNA 4 architecture: 56 compute units, 3584 stream processors, 56 ray accelerators and 112 AI accelerators.
- 16GB GDDR6: 256-bit at 20 Gbps with 64MB of Infinity Cache, plenty of VRAM for high-resolution textures.
- FSR 4 support: machine-learning upscaling in supported games.
- 220W board power: two PCIe 8-pin connectors, no 12V-2x6 cable needed.

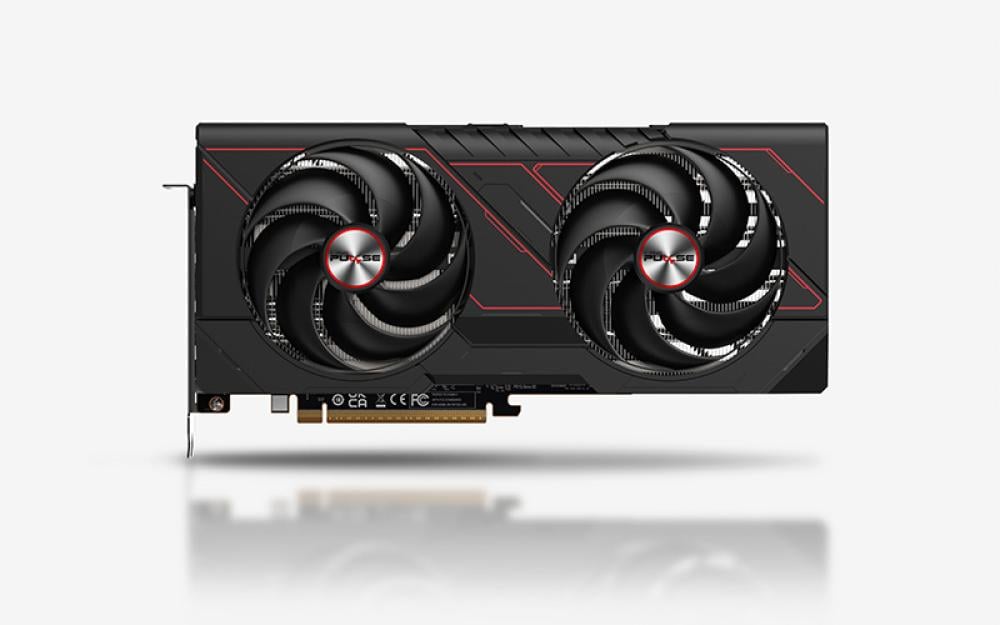

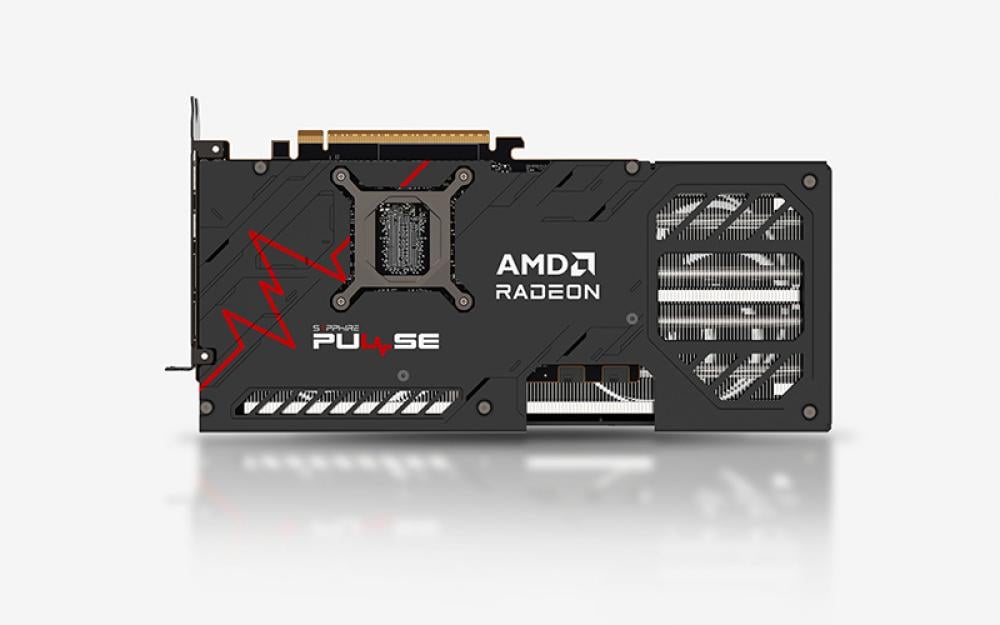

- Dual-X cooling: two AeroCurve fans and a metal backplate in a 280 mm, 2.5-slot card.
Specifications
| Model / part number | PULSE AMD Radeon RX 9070 16GB GDDR6 (11349-03-20G) |
|---|---|
| GPU | AMD Radeon RX 9070, RDNA 4 |
| Compute units | 56 CUs, 3584 stream processors |
| Accelerators | 56 ray accelerators, 112 AI accelerators |
| Clocks | Game clock 2070 MHz, boost up to 2520 MHz |
| Memory | 16GB GDDR6, 256-bit, 20 Gbps, 64MB Infinity Cache |
| Interface | PCIe 5.0 x16 |
| Outputs | 2 × DisplayPort 2.1a, 2 × HDMI 2.1b |
| Board power / PSU | 220W / 650W recommended |
| Power connectors | 2 × PCIe 8-pin |
| Cooling | Dual-X with AeroCurve fans, metal backplate |
| Dimensions | 280 × 120.25 × 51.5 mm, 2.5-slot |
Good to know: It fits any PCIe x16 slot and also runs on PCIe 4.0. Make sure your case fits a 280 mm card and the slot below is free.
FAQ
What power supply does the SAPPHIRE PULSE RX 9070 need?
A 650W power supply with two separate PCIe 8-pin cables. Typical board power is 220W, and no 12V-2x6 cable is required.
Does it support FSR 4 and ray tracing?
Yes. RDNA 4 brings 56 ray accelerators and 112 AI accelerators, and the card supports FSR 4 in games that offer it.
How many monitors can I connect?
Up to four: it has two DisplayPort 2.1a and two HDMI 2.1b outputs.
