The MSI GeForce RTX 5060 8G VENTUS 2X OC is a compact graphics card for 1080p gaming. It has 3840 CUDA cores, 8GB of GDDR7 memory and DLSS 4 with Multi Frame Generation, draws 145W from a single 8-pin cable and is only 197mm long.
Key features
- NVIDIA GeForce RTX 5060 with 3840 CUDA cores, 2527MHz boost
- 8GB GDDR7 at 28Gbps on a 128-bit bus

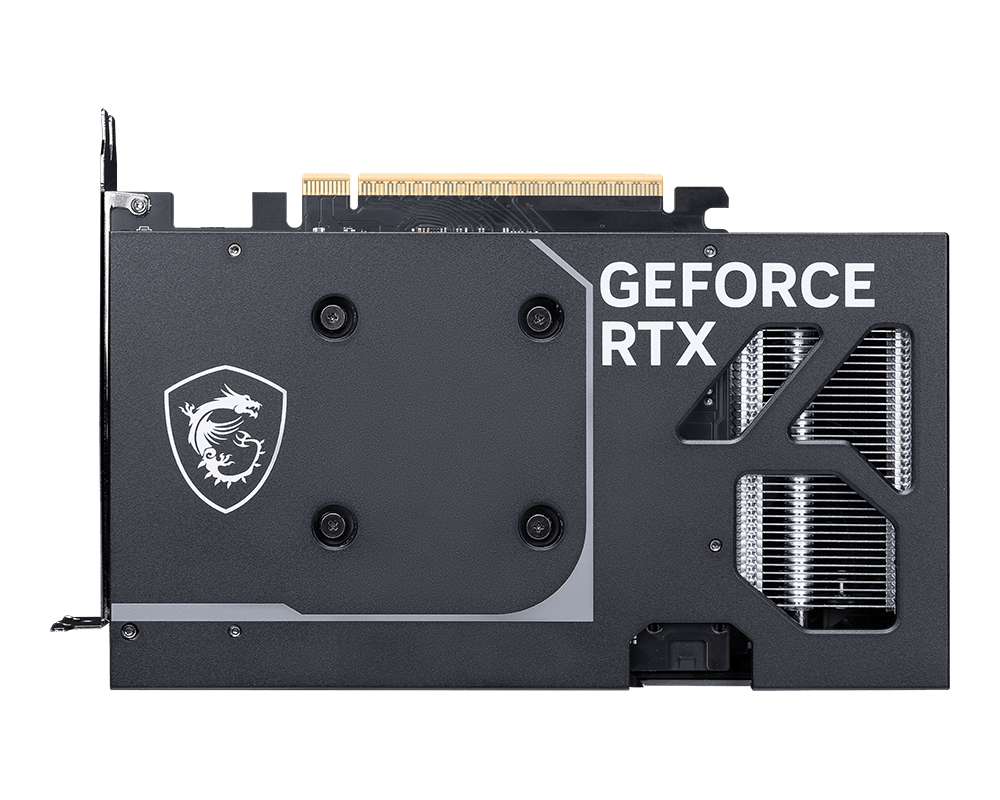

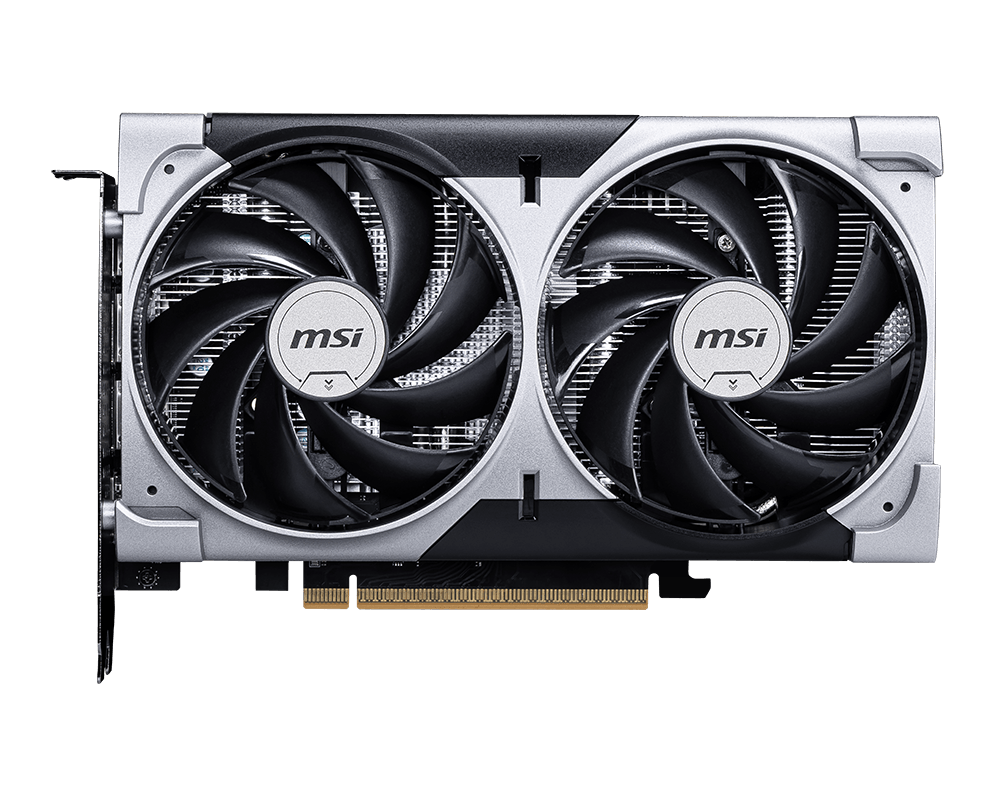

- Two TORX FAN 5.0 fans with Zero Frozr idle fan-stop and a reinforcing backplate
- Single 8-pin power connector, 550W PSU recommended
- 197mm length suits small and micro-ATX cases
Specifications
| Model | MSI GeForce RTX 5060 8G VENTUS 2X OC (G5060-8V2C) |
|---|---|
| GPU / CUDA cores | NVIDIA GeForce RTX 5060 / 3840 |
| Boost clock | 2527MHz; 2535MHz Extreme Performance via MSI Center |
| Memory | 8GB GDDR7, 28Gbps, 128-bit |
| Interface | PCI Express Gen 5 x16 (x8 lanes) |
| Outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b, up to 4 displays, max 7680 x 4320 |
| Power | 145W, 1 x 8-pin, 550W PSU recommended |
| Dimensions / weight | 197 x 120 x 41mm (dual slot) / 511g |
Compatibility
The card fits a PCIe x16 slot on any modern Intel or AMD board and uses eight lanes. On a PCIe 3.0 board it still works, with less bandwidth. No 12V-2x6 cable or adapter is needed.
FAQ
Is 8GB enough for 1080p in 2026?
Yes. 8GB of GDDR7 handles most competitive and story games at 1080p high settings, and DLSS 4 raises frame rates further. At 1440p ultra in heavy games, you may need to lower texture quality.
What power supply do I need?
MSI recommends 550W. The card draws 145W through one PCIe 8-pin connector.
Will it fit a small case?
Usually, yes. At 197mm long and 41mm thick it is shorter than most higher-tier cards; check your case's maximum GPU length.
