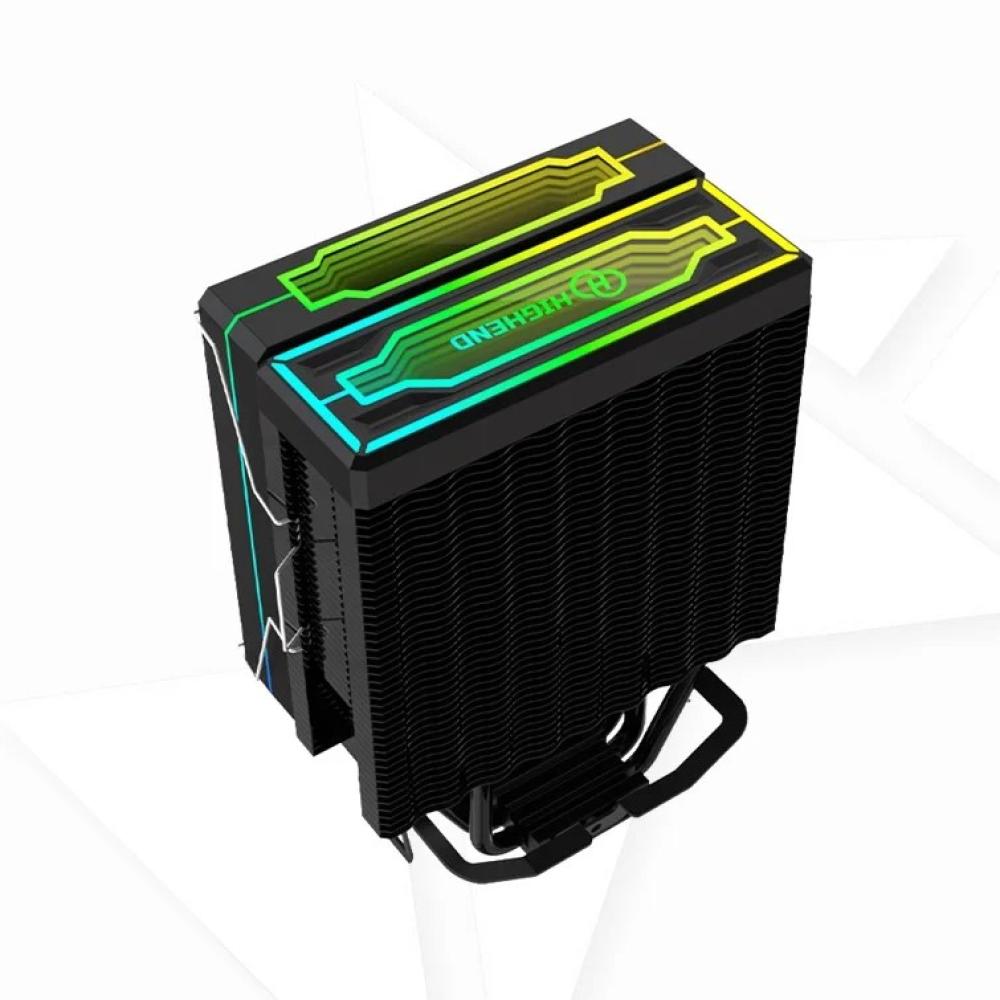

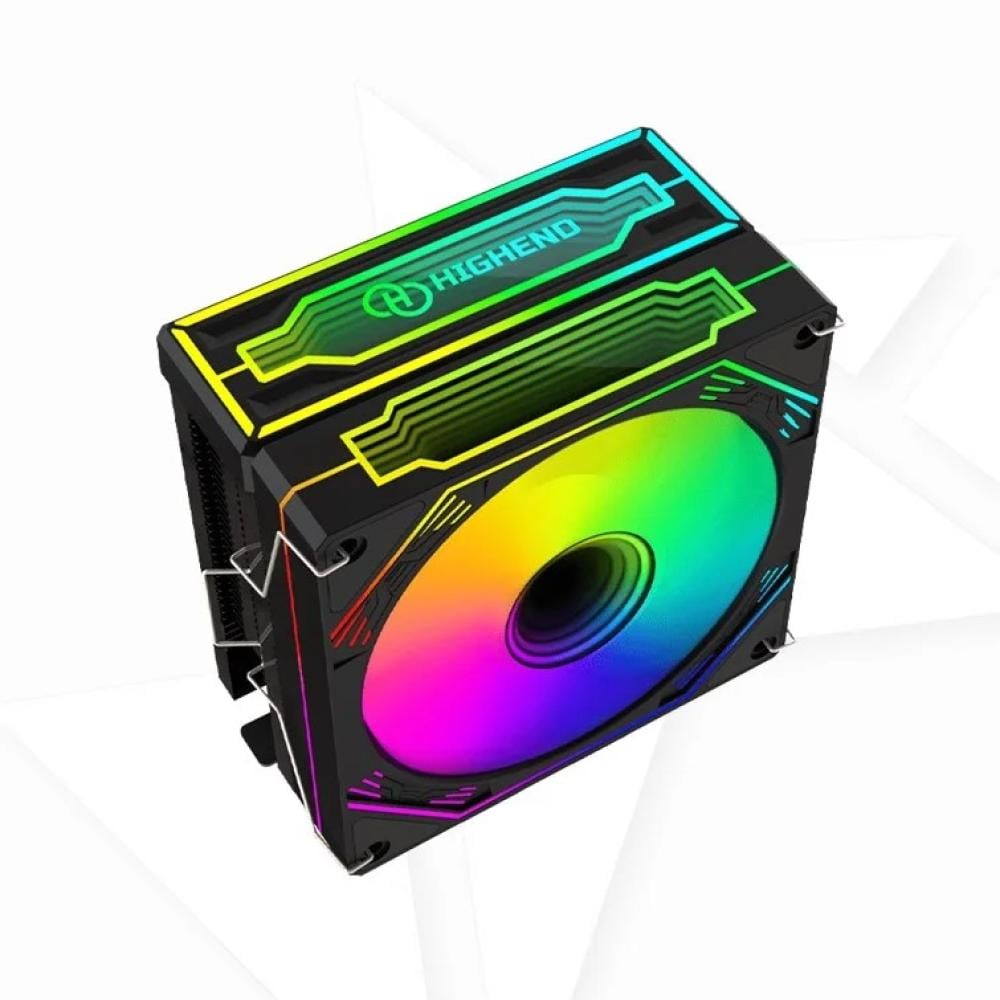

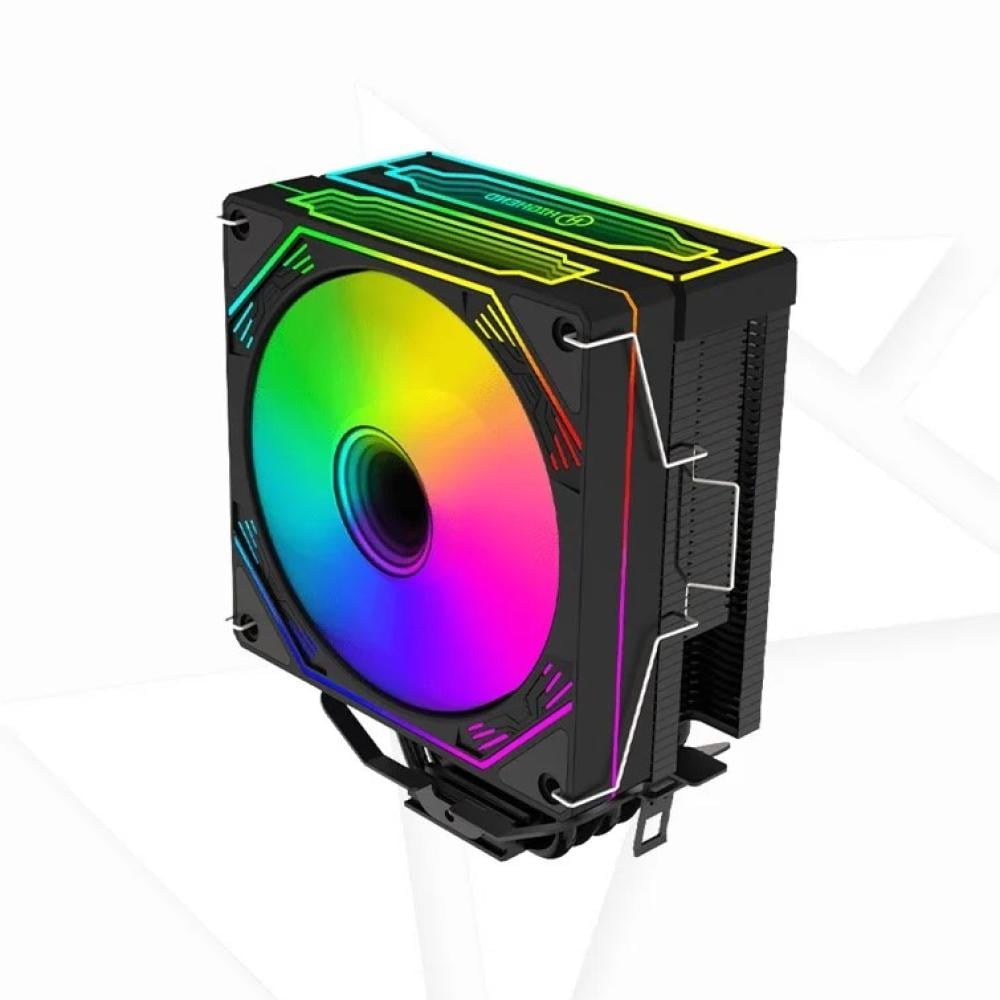

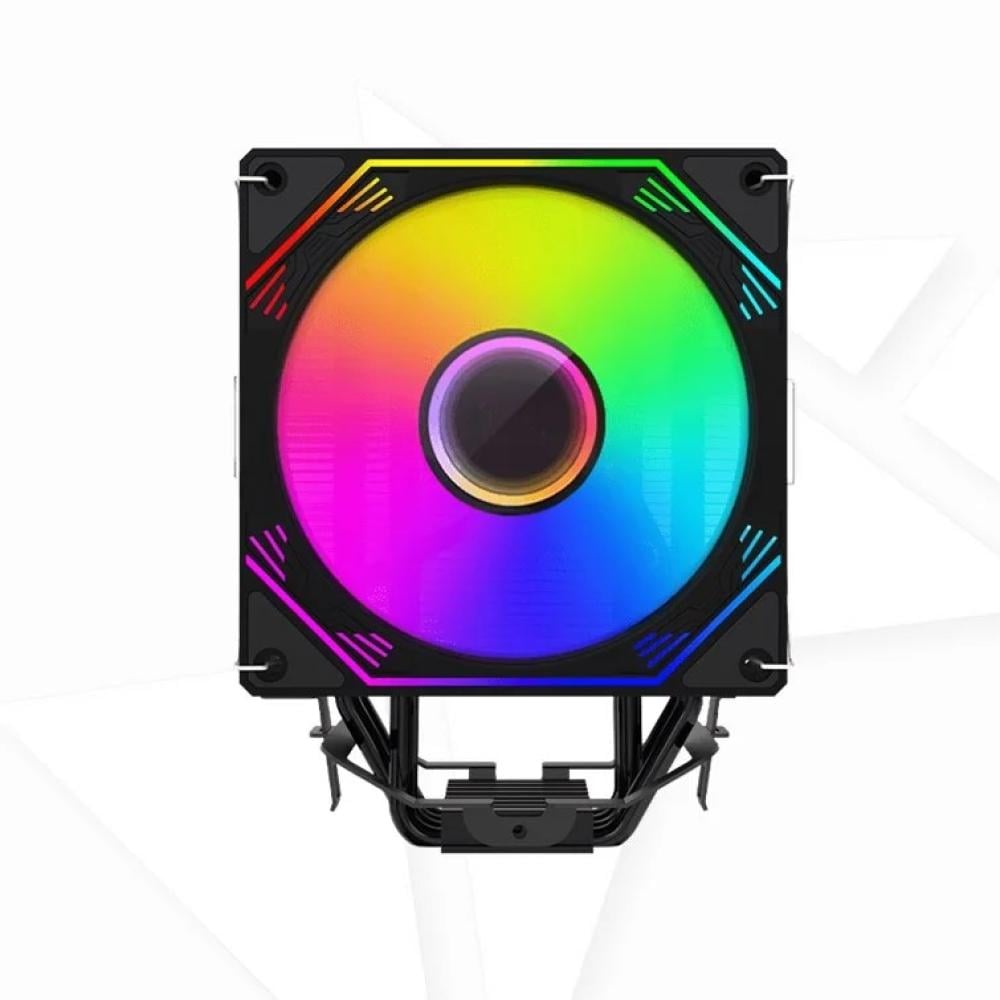

The HighEnd H-500 Heat Killer Pro is a black CPU air cooler with four copper heat pipes and a 120 mm ARGB fan. Rated for 205-210 W TDP, it suits gaming builds that need capable, quiet cooling with a touch of lighting.
Key features
- 4 copper heat pipes for efficient heat transfer
- 120 mm fan running at 600-1600 RPM with 4-pin PWM speed control
- ARGB lighting through a 3-pin 5V header
- Rated TDP of 205-210 W
- Noise level of 14-26 dBA
- 40,000-hour rated fan life
Specifications
| Model | H-500 Heat Killer Pro |
|---|---|
| Dimensions | 130 x 78 x 155 mm |
| Fan size | 120 x 120 x 25 mm |
| Rated voltage | 5-12V DC |
| Fan speed | 600-1600 RPM |
| Noise | 14-26 dBA |
| Connectors | ARGB 3-pin 5V + 4-pin PWM |
| TDP | 205-210 W |
| Heat pipes | 4x copper |
| Fan life | 40,000 hours |
| Color | Black |
Frequently asked questions
Will the HighEnd H-500 fit in my case?
The cooler measures 130 x 78 x 155 mm. Compare this with your case's CPU cooler height clearance before ordering.
How do I connect the fan and lighting?
The fan uses a 4-pin PWM header for speed control, and the ARGB lighting connects to a 3-pin 5V ARGB header on your motherboard or controller.
Is it quiet?
Noise is rated at 14-26 dBA across its 600-1600 RPM speed range.
