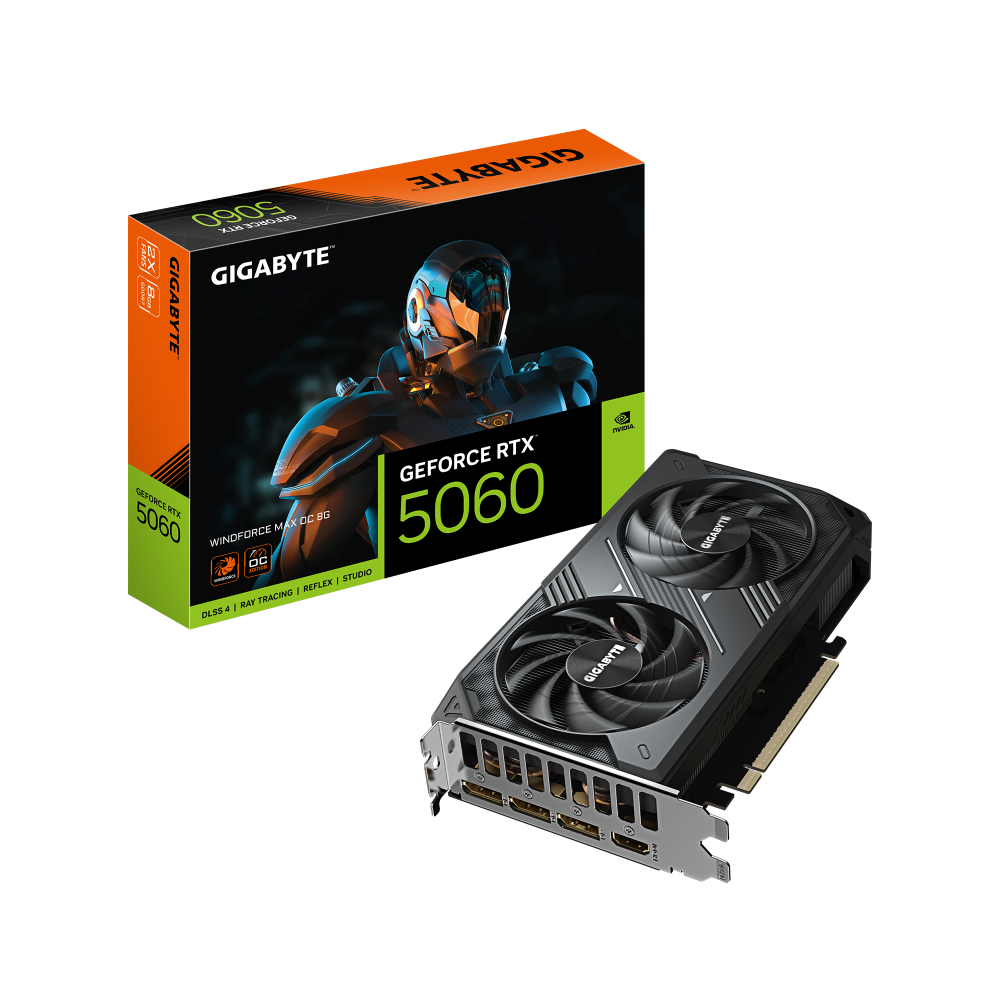

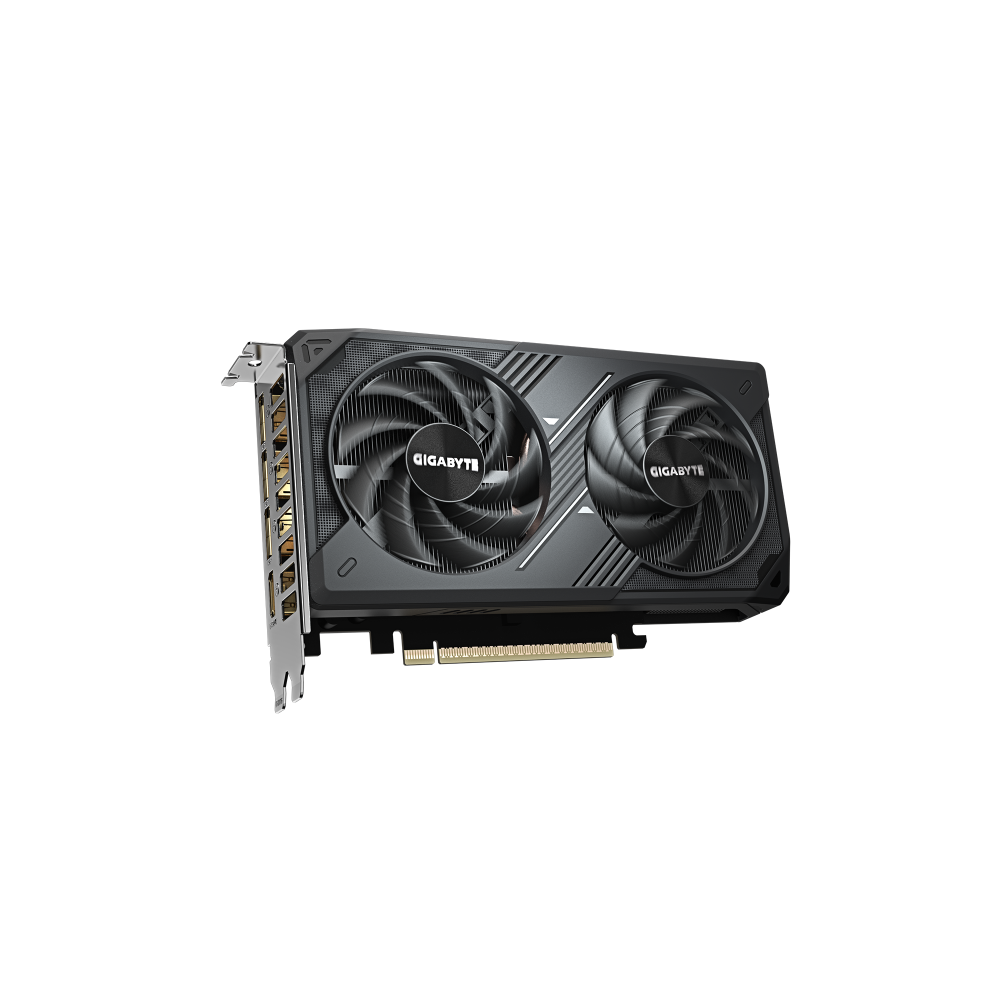

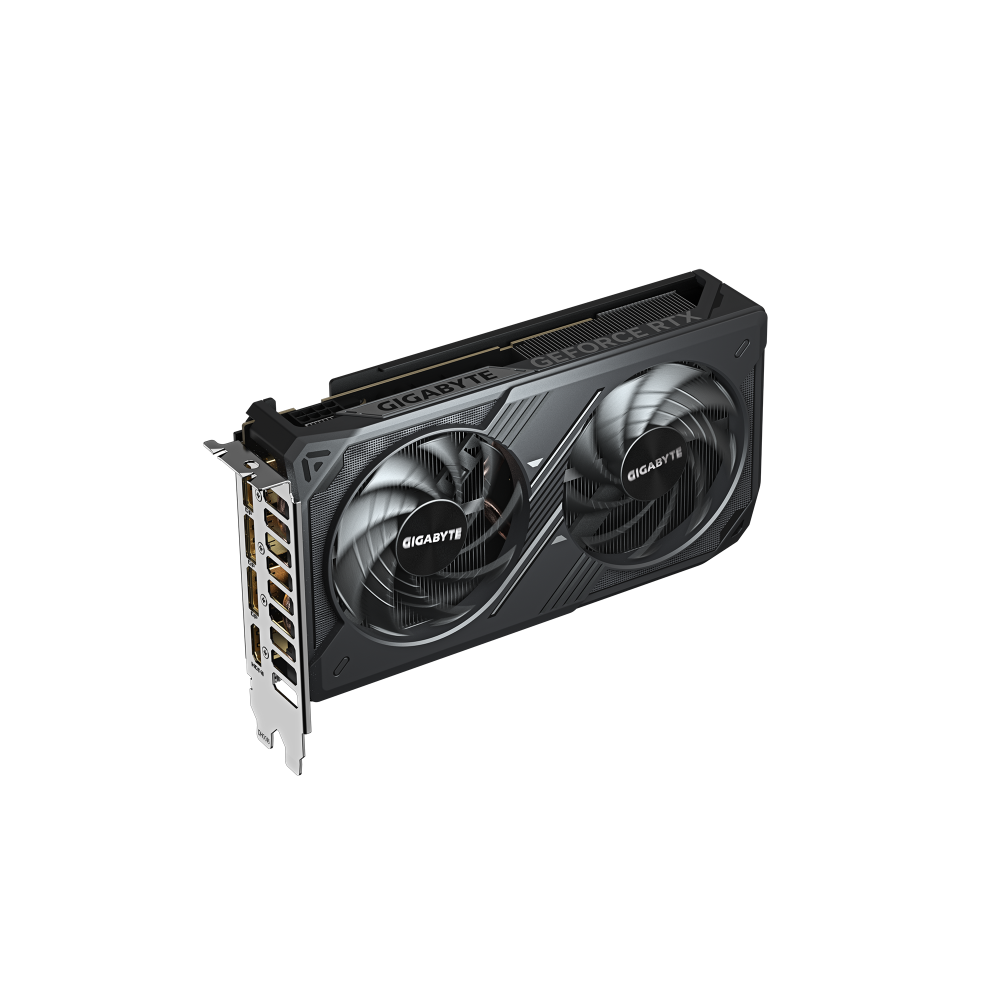

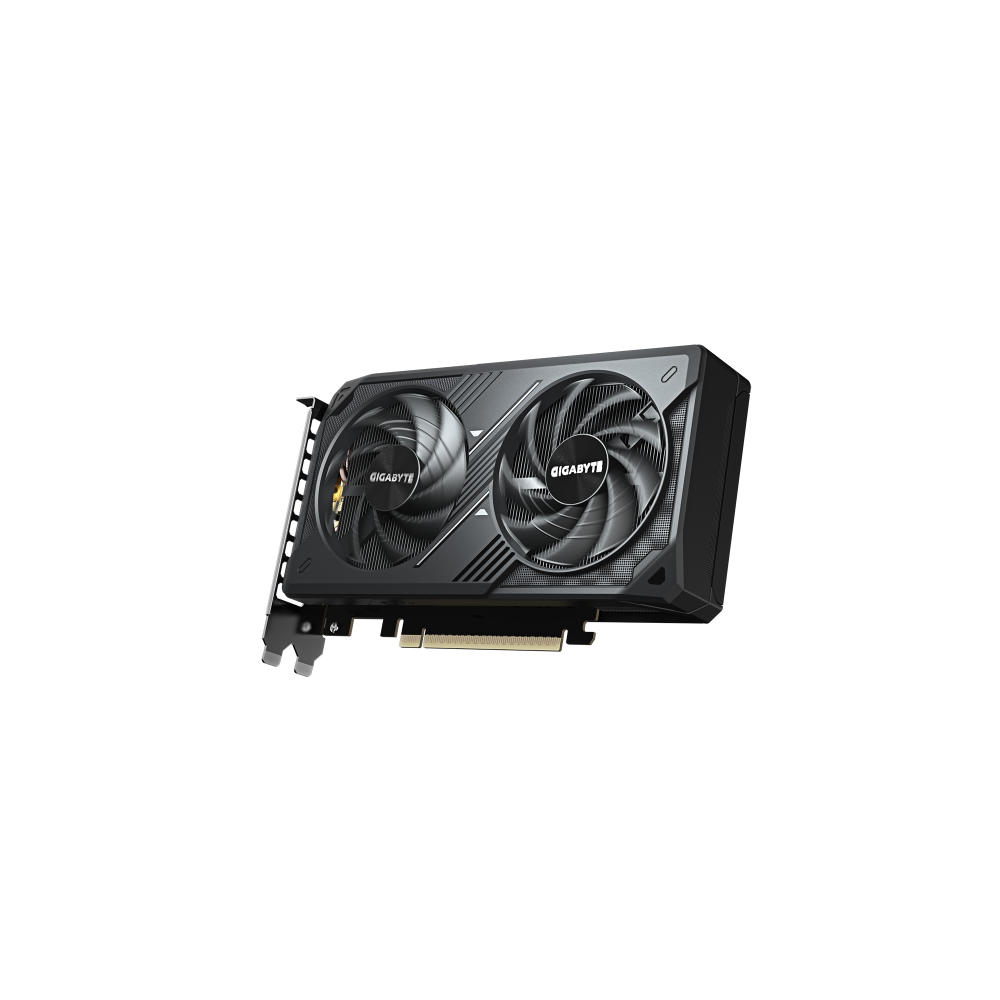

The GIGABYTE GeForce RTX 5060 WINDFORCE MAX OC is a 199mm graphics card with 8GB of GDDR7 memory, NVIDIA Blackwell architecture and DLSS 4 support. It is aimed at smooth 1080p gaming and runs from a 550W power supply.
Key features
- NVIDIA Blackwell architecture with DLSS 4
- 3840 CUDA cores, 2512 MHz core clock (reference 2497 MHz)
- 8GB GDDR7 on a 128-bit bus at 28Gbps

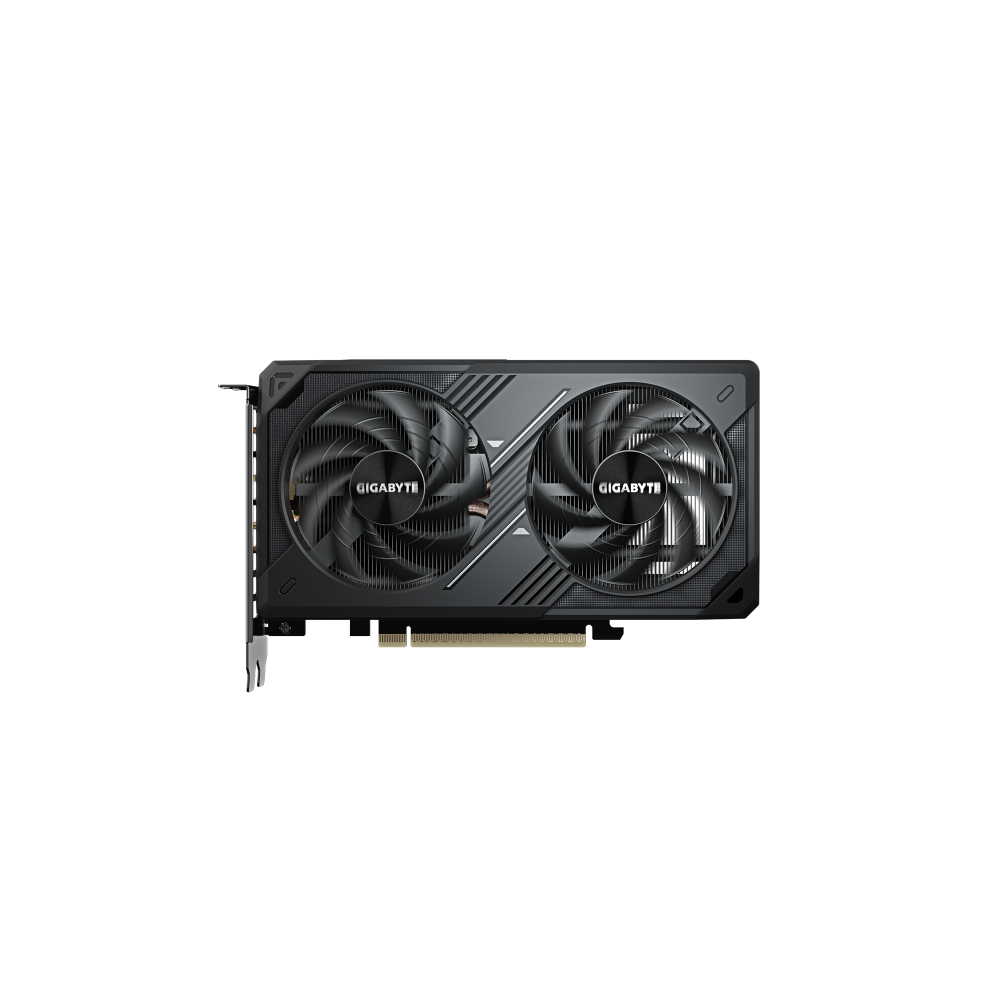

- WINDFORCE cooling with alternate-spinning Hawk fans, composite copper heat pipes, a copper plate, server-grade thermal gel and 3D Active Fan

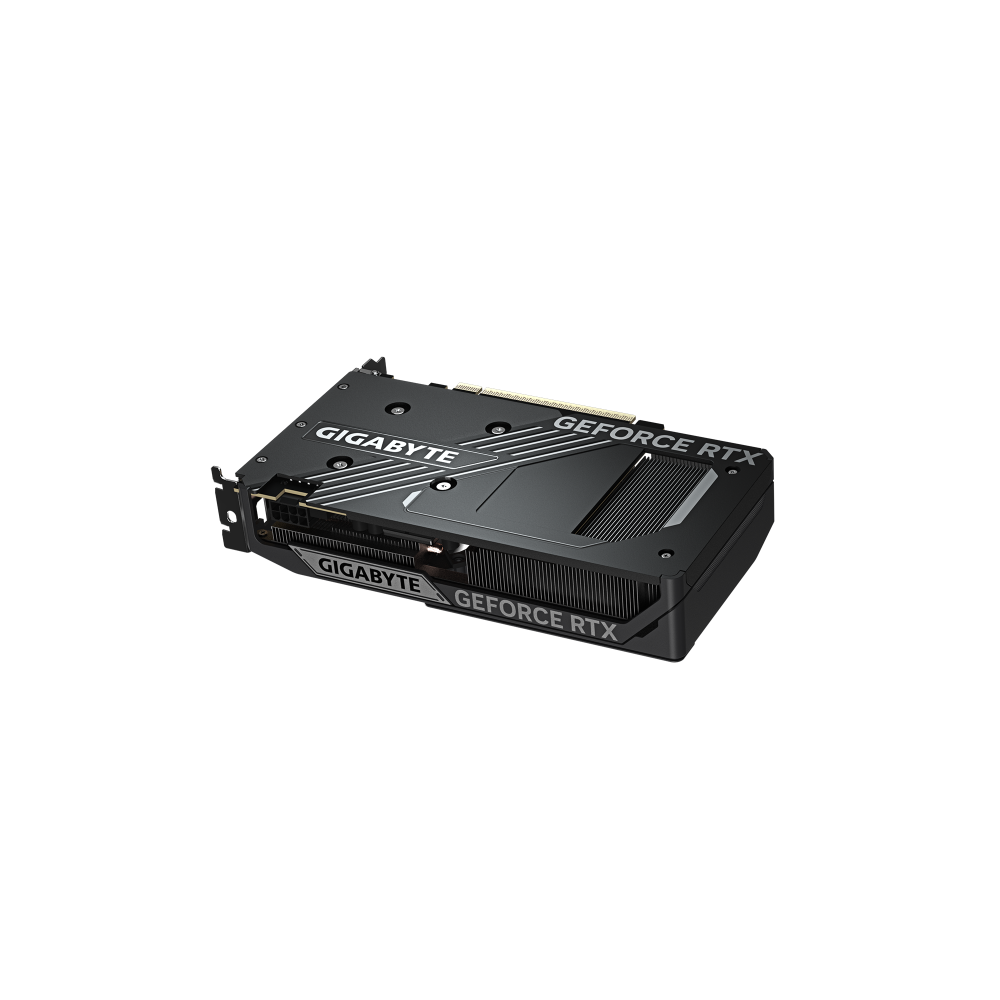

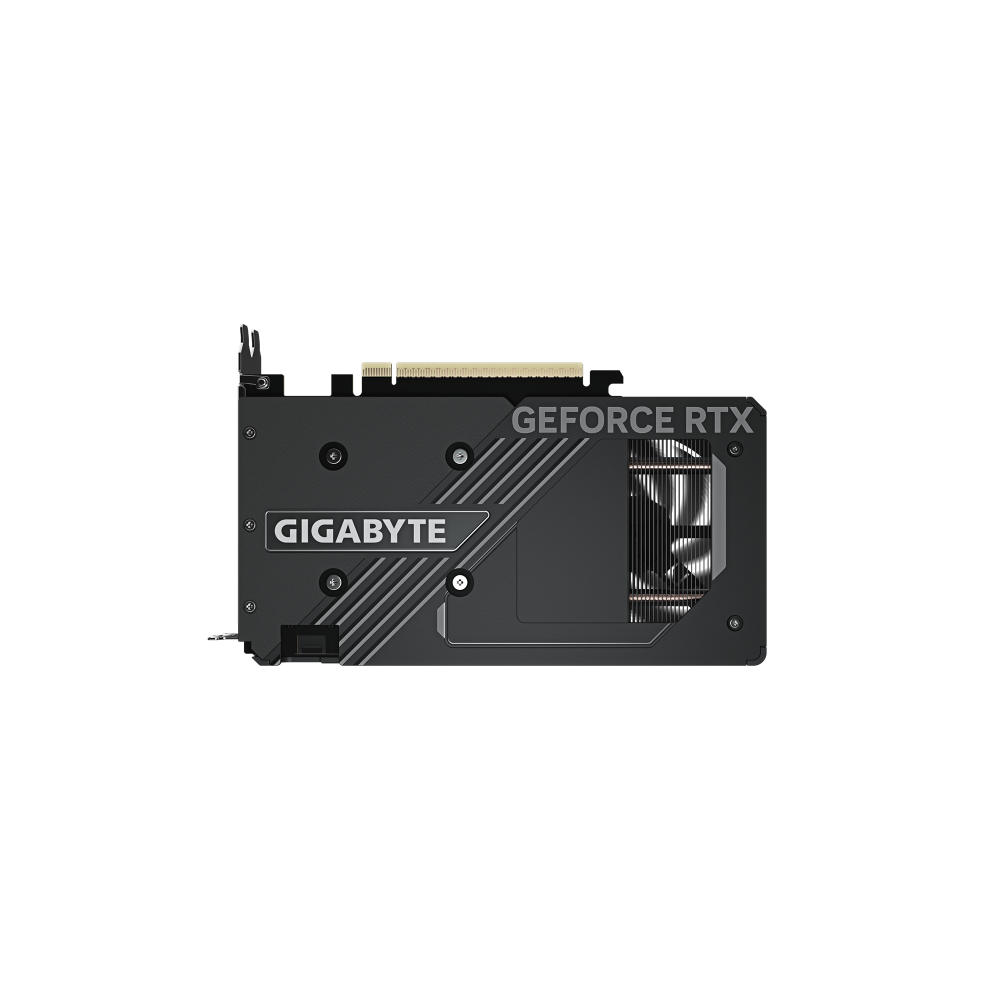

- Reinforced structure with a backplate secured to the I/O bracket

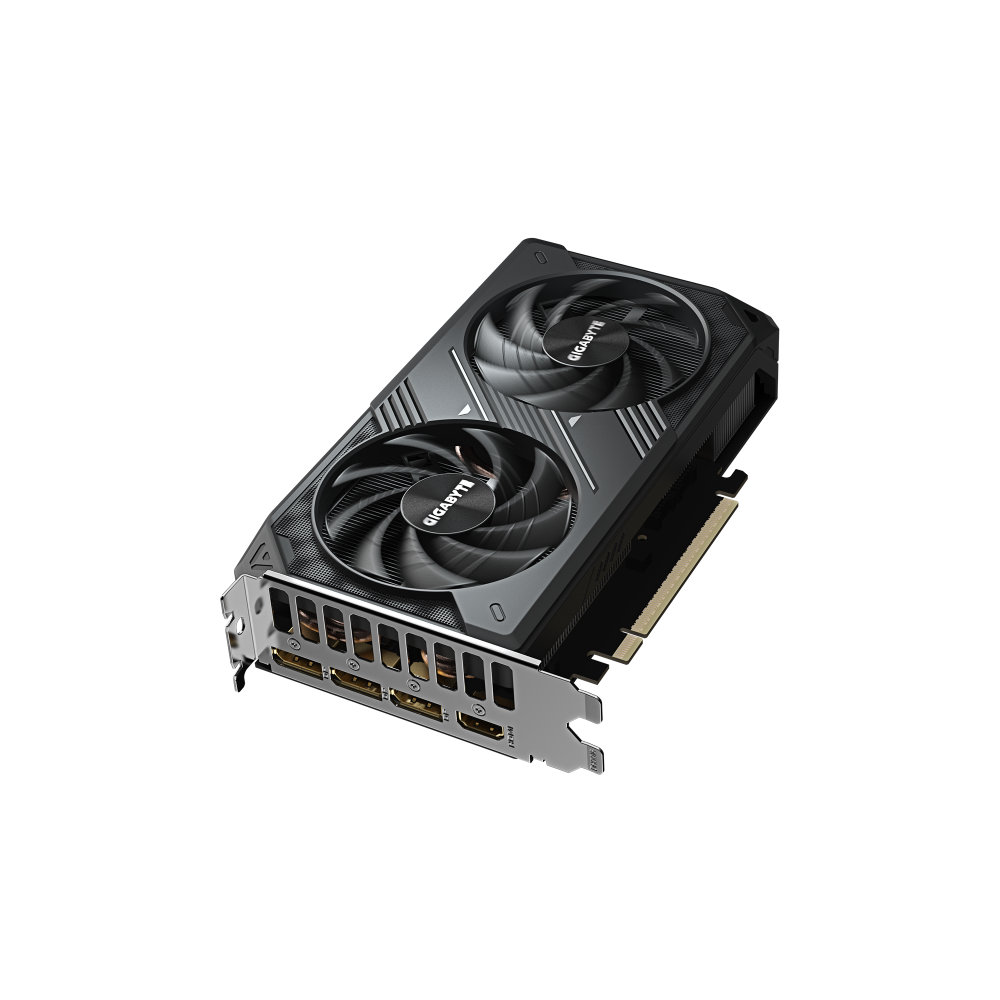

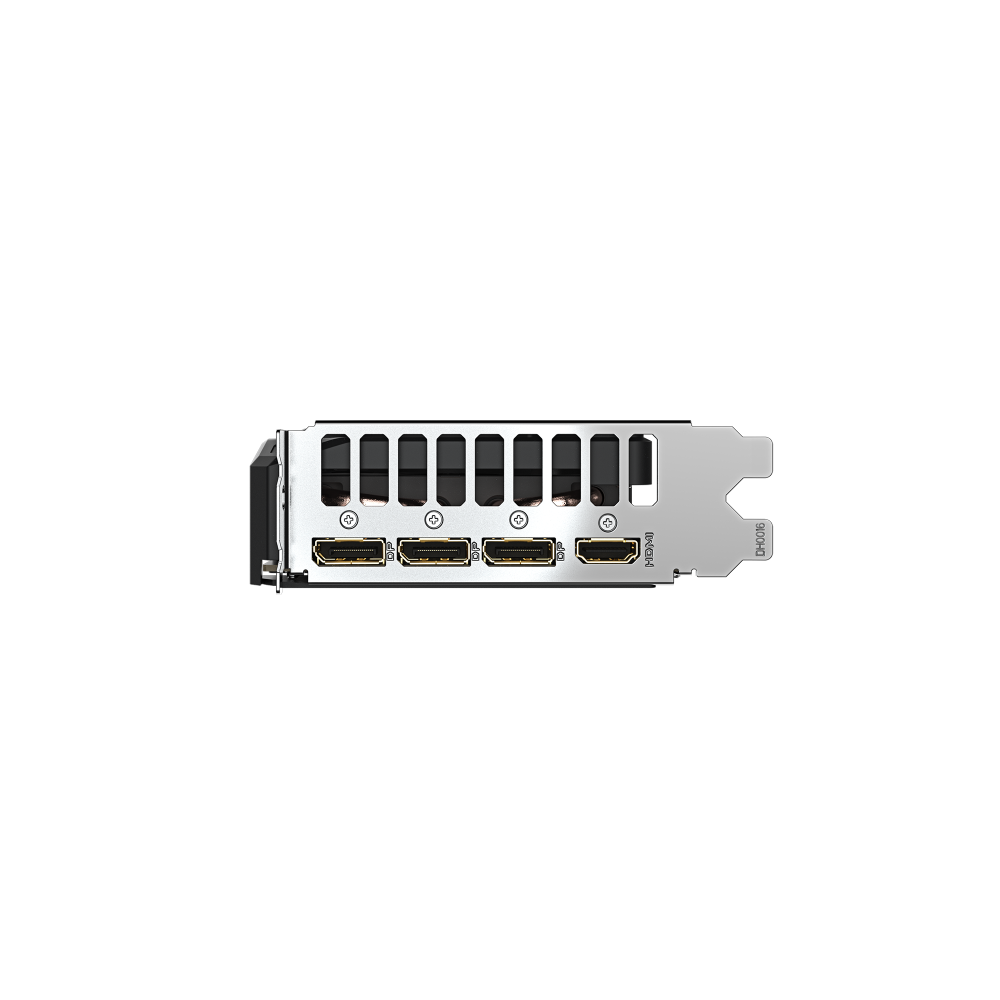

- Three DisplayPort 2.1b and one HDMI 2.1b, up to four displays
Specifications
| Graphics processor | GeForce RTX 5060 |
|---|---|
| Core clock | 2512 MHz (reference 2497 MHz) |
| CUDA cores | 3840 |
| Memory | 8GB GDDR7, 128-bit |
| Memory speed | 28Gbps |
| Interface | PCIe 5.0 |
| Outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b |
| Max digital resolution | 7680 x 4320 |
| Multi-display | 4 |
| Card size (L x W x H) | 199 x 116 x 40 mm |
| PCB form | ATX |
| API support | DirectX 12, OpenGL 4.6 |
| Recommended PSU | 550W |
| Power connector | 1 x 8-pin |
Frequently asked questions
What power supply do I need?
A 550W power supply is recommended, with one 8-pin power connector.
How many monitors can I connect?
Up to four, through three DisplayPort 2.1b outputs and one HDMI 2.1b, at up to 7680 x 4320.
How long is the card?
199mm long, 116mm wide and 40mm high.
