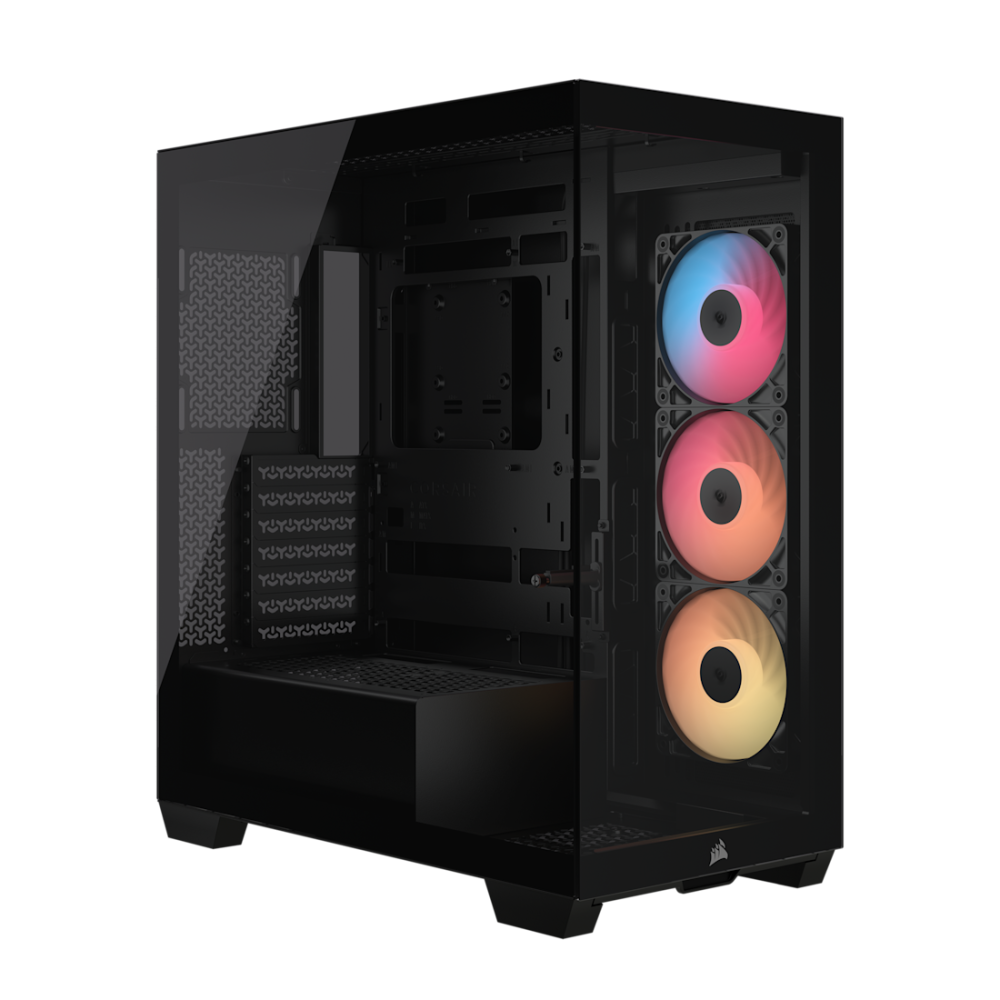

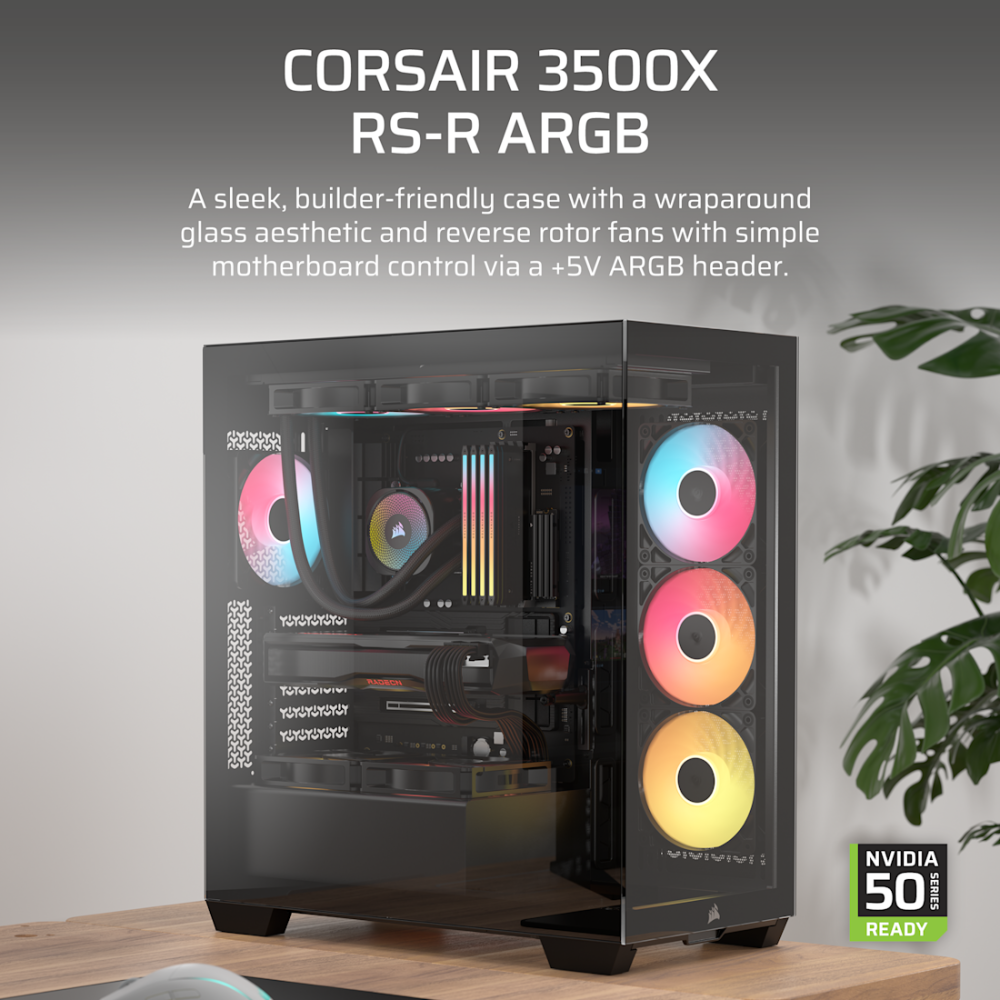

The CORSAIR 3500X RS-R ARGB in black is a mid-tower showcase case with tempered glass on the front and side. Three reverse-blade RS120-R ARGB fans face the glass so the lighting shows fully, and it fits graphics cards up to 425mm and reverse-connector motherboards.
Key features
- Front and side tempered glass panels for a two-angle view

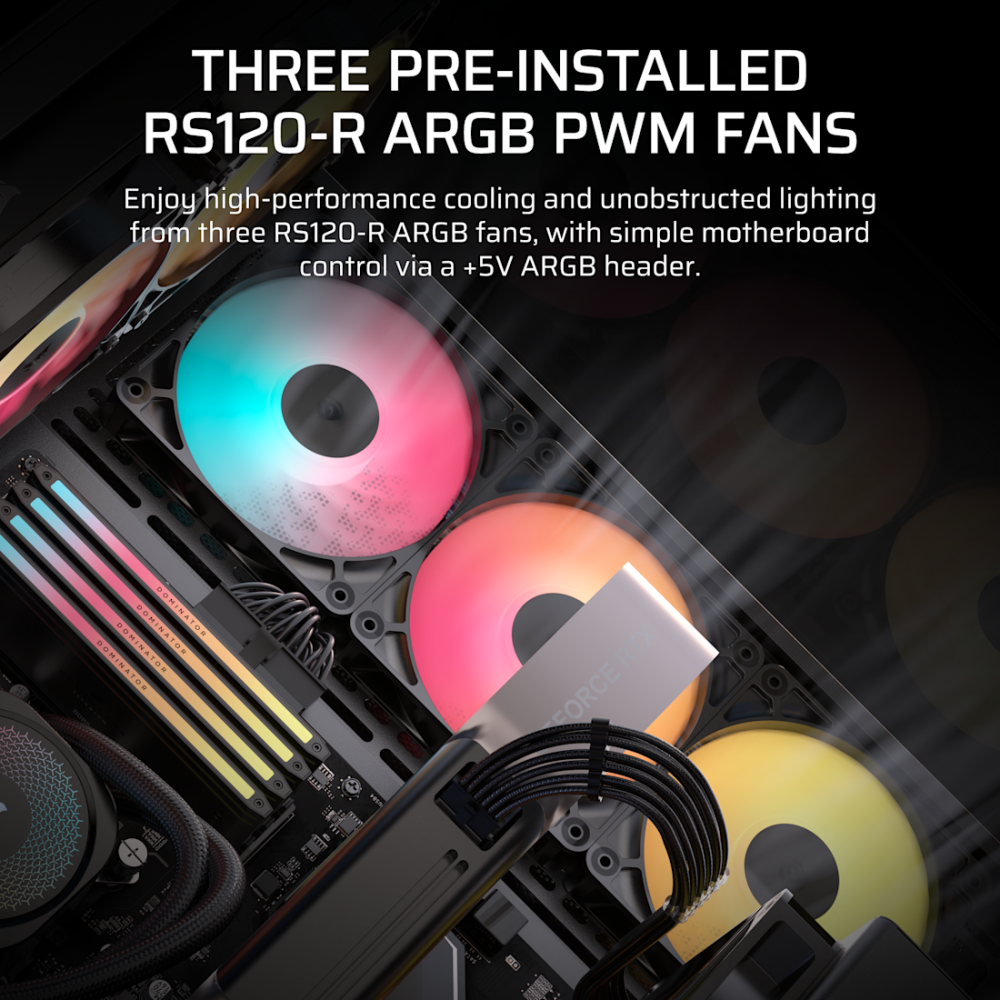

- Three RS120-R ARGB reverse-blade fans (4-pin PWM and 3-pin ARGB, daisy-chained)

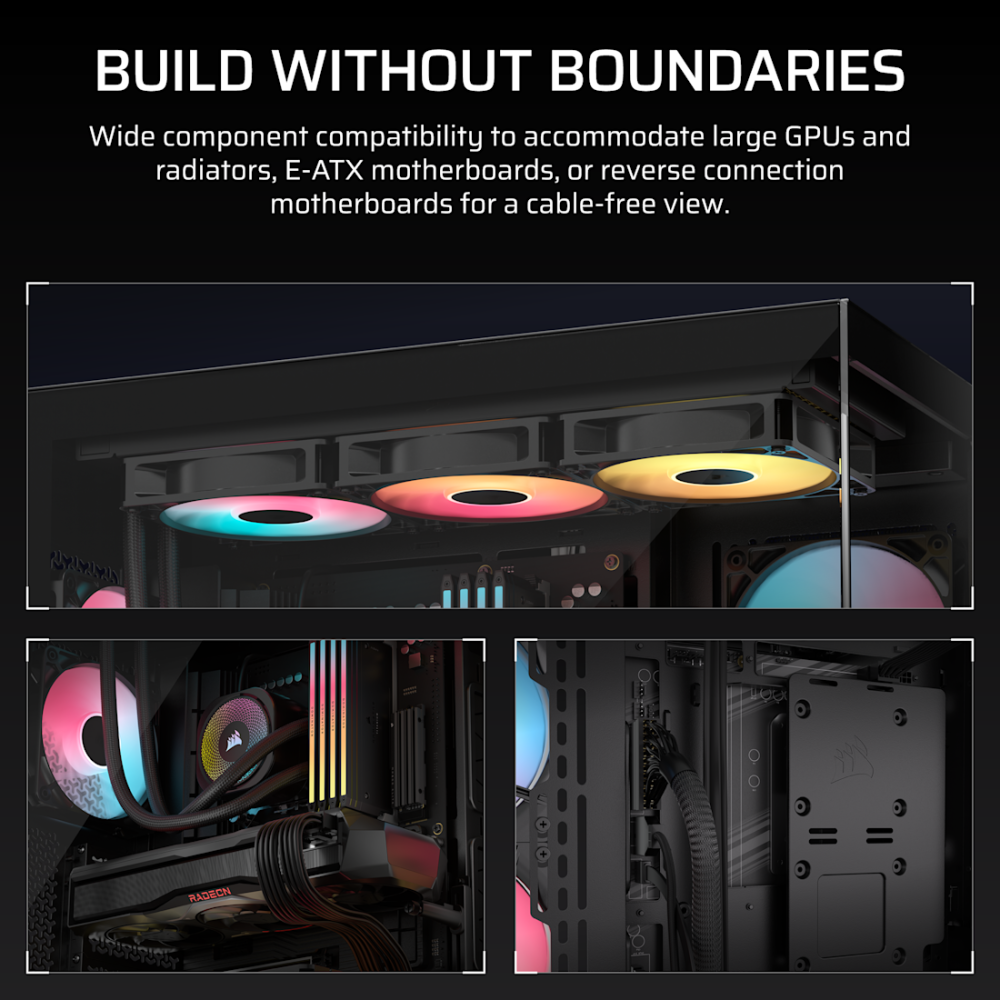

- GPUs up to 425mm, CPU coolers up to 170mm, ATX PSUs up to 180mm
- 360mm radiator support on the top or side, up to ten 120mm fans
- Front USB 3.2 Gen 2x2 Type-C (20Gbps) and BTF / Project Zero / Project Stealth support
Specifications
| Model | CORSAIR 3500X RS-R ARGB, Black (CC-9011322-WW) |
|---|---|
| Form factor | Mid-Tower, 460 x 240 x 506mm, 10kg |
| Motherboards | Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305 x 277mm), reverse-connector boards |
| Max GPU / cooler / PSU | 425mm / 170mm / 180mm |
| Radiator support | Top 360/280/240mm; side 360/280/240mm; rear 120mm; no front mount |
| Storage | 2 x 3.5" + 2 x 2.5" |
| Expansion slots | 7 horizontal or 4 vertical |
| Front I/O | 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 1 Type-A, audio |
| Manufacturer warranty | 2 years (CORSAIR) |
Good to know
The front is glass, so there are no front fan or radiator mounts; airflow comes from the side, top and rear. The included fans run from motherboard PWM and ARGB headers, not iCUE LINK. To control them in iCUE you need a separately sold Commander DUO.
FAQ
Will an RTX 5090 fit?
By length, yes. The 425mm limit exceeds most custom RTX 5090 cards. Check the card's thickness and keep the PSU at 180mm or shorter.
How many fans can I install?
Up to ten 120mm fans: three on the side, three on top, one rear, one bottom and two on the PSU shroud.
Do the included fans work with iCUE?
Not directly. They are standard PWM/ARGB fans controlled through your motherboard's lighting software.
