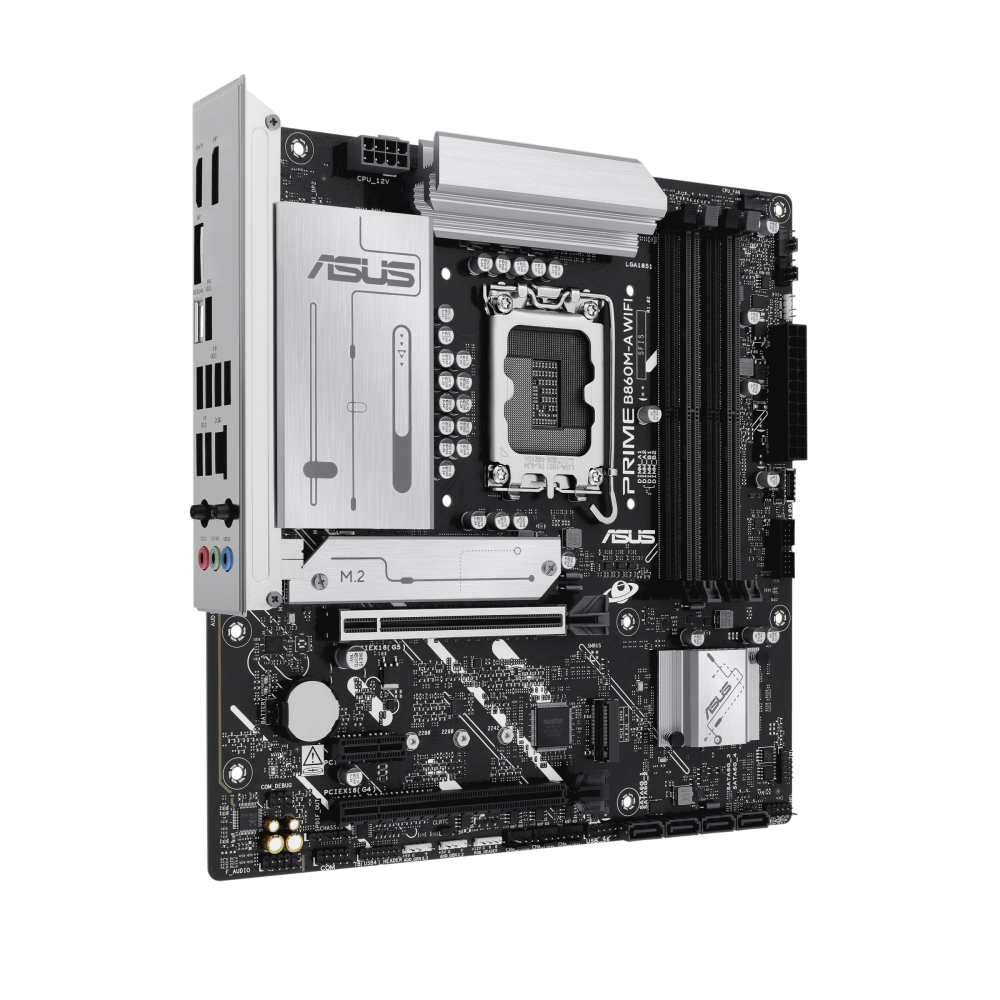

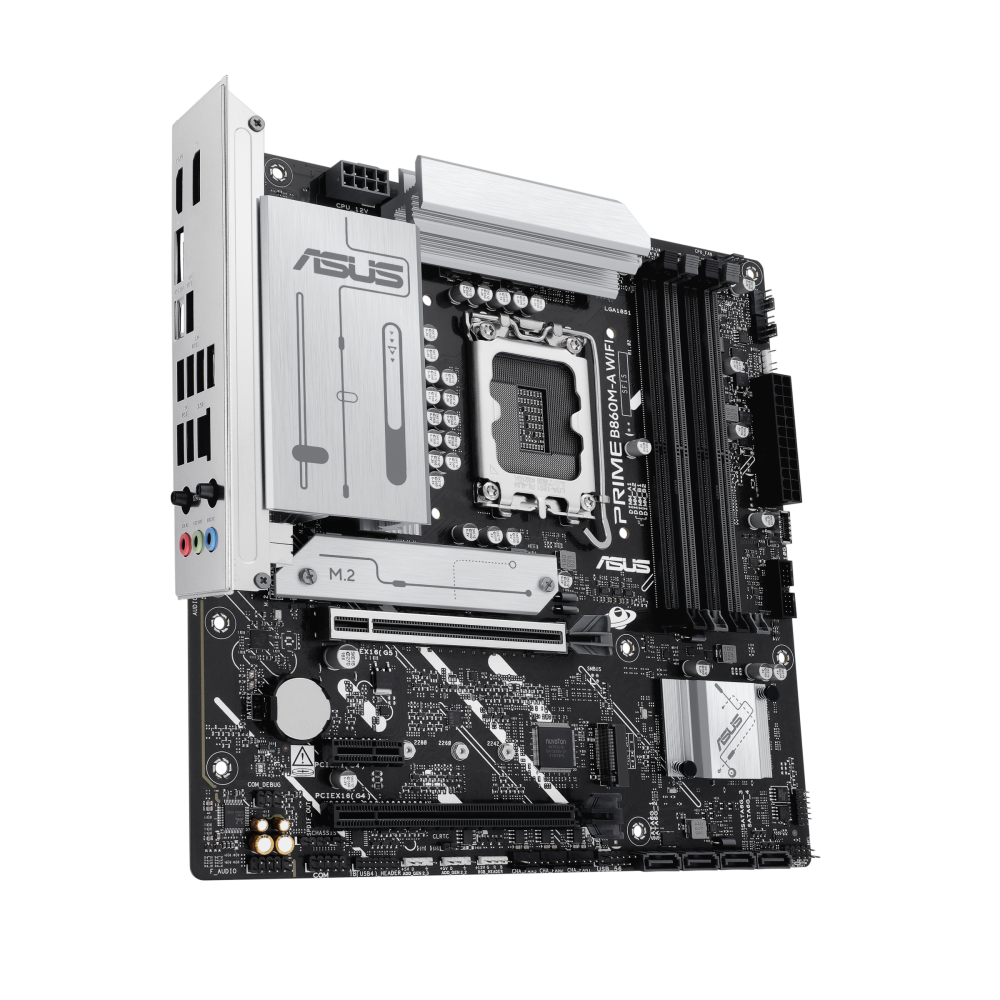

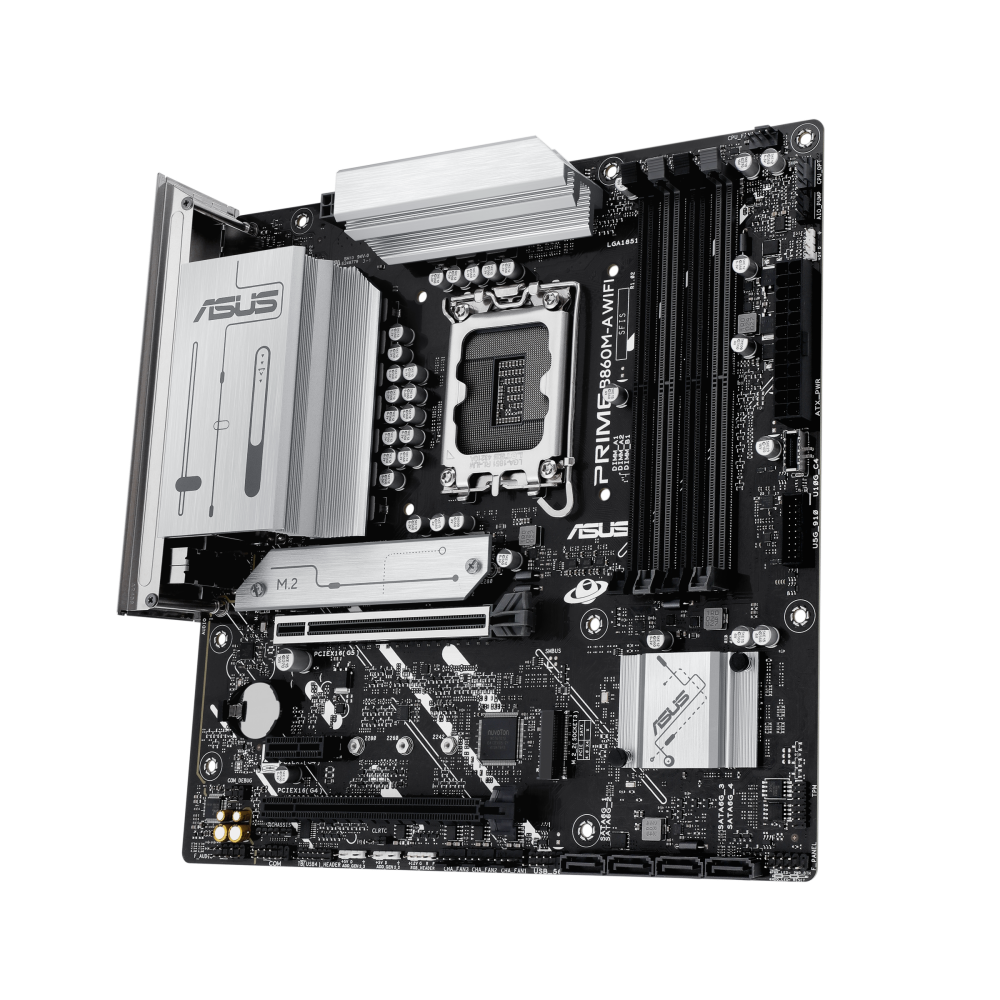

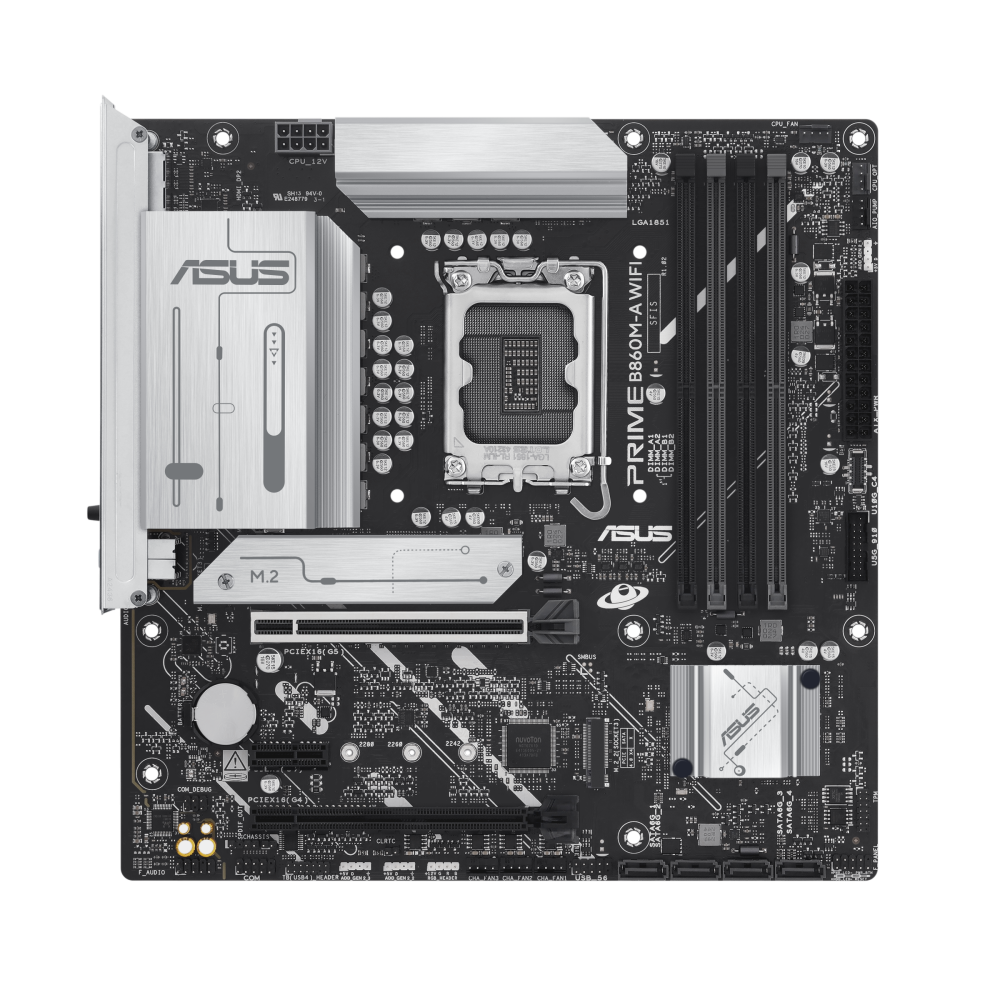

The ASUS PRIME B860M-A WIFI is a micro-ATX motherboard for Intel Core Ultra (Series 2) processors on LGA 1851. It is a practical base for mid-range Intel gaming builds, with four DDR5 slots, a PCIe 5.0 x16 slot, a PCIe 5.0 M.2 slot and built-in Wi-Fi 6E.
Key features
- Intel B860 chipset with memory overclocking via XMP
- Four DDR5 slots, up to 256GB at 8666+ MT/s (OC), with CUDIMM support
- PCIe 5.0 x16 graphics slot and a PCIe 5.0 x4 M.2 slot
- Wi-Fi 6E 2x2, Bluetooth 5.3 and Realtek 2.5Gb Ethernet
- Three ARGB Gen2 headers, one Aura RGB header and an AIO pump header
Specifications
| Socket / chipset | LGA 1851 / Intel B860 |
|---|---|
| Supported CPUs | Intel Core Ultra (Series 2) |
| Memory | 4 x DDR5 DIMM, dual channel, up to 256GB, 8666+ MT/s (OC), CUDIMM, XMP |
| Expansion | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1 |
| Storage | M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4 (2242/2260/2280), 4 x SATA 6Gb/s |
| Networking | Realtek 2.5Gb Ethernet, Wi-Fi 6E 2x2, Bluetooth 5.3 |
| Rear I/O | USB 20Gbps Type-C (DP Alt), USB 10Gbps Type-A, 2 x USB 5Gbps, 4 x USB 2.0, 2 x DisplayPort, HDMI |
| Audio | Realtek 7.1 HD Audio |
| Form factor | micro-ATX, 24.4 x 24.4 cm |
Compatibility
LGA 1851 Core Ultra (Series 2) processors only, such as the Core Ultra 5 225 or Core Ultra 7 265K; 12th to 14th Gen chips will not fit. DDR5 only. B860 supports memory overclocking but not CPU overclocking. Most LGA 1700 coolers fit LGA 1851, but confirm with the cooler maker.
FAQ
Will an i5-14400 or i7-14700K fit?
No. LGA 1851 is for Intel Core Ultra (Series 2) processors; 12th to 14th Gen chips use LGA 1700.
Does it have Wi-Fi and Bluetooth?
Yes. Wi-Fi 6E 2x2 on 2.4/5/6GHz with Bluetooth 5.3, and a Q-Antenna that attaches without tools.
Does it support Gen5 SSDs?
Yes. M.2_1 runs at PCIe 5.0 x4 directly from the CPU. The second slot is PCIe 4.0 x4.
